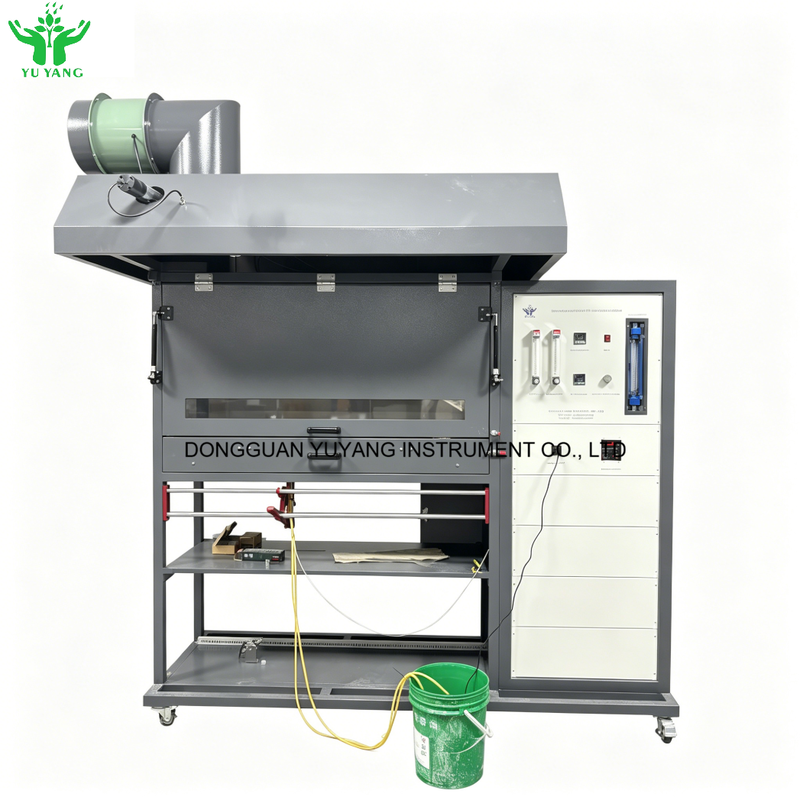

YUYANG ISO 9239-1 & ASTM E648 Flooring Radiant Panel Test Apparatus
Description:
Flooring Radiant Panel tester (ISO 9239, Flooring Radiant Panel Tester) is a test method that formally reflect spread of flame on flooring material back- draft condition when fie on building happened in compartment or room adjacent, or high temperature gas radiated to flooring surface a hot radiation heat accumulated at upper of midway during a fire at an early growing step.
Standard:
ISO 9239-1: Reaction to Fire Tests for Flooring- Part 1: Determination of Burning Behavior Using a Radiant Source
ISO 9239-2: Reaction to Fire Tests for Flooring- Part 2: Determination of Flame Spread at a Hat Flux Level of 25kW/m2
ASTM E 648: Standard Test Method for Critical Radiant Flux of Floor- Covering System Using a Radiant Heat Energy Source
Structure:
1. The structure of the machine consists of two parts: a combustion chamber and a control chamber.
2. Combustion chamber size: about L1420*W1200*H2300 (mm).
3. Control chamber/combustion chamber material: high-quality 304 # stainless steel plate, CNC machine processing.
4. Blowtorch: Fully meet the requirements of GB/T 11785.
5. Other mechanical parts are made of 304 stainless steel or 45# steel, anti-corrosion and anti-rust.
Features:
1. The resulting test chamber is insulated with calcium silicate insulation board and is provided with a temperature-resistant observation window.
2. The stainless steel sample support assembly is mounted on a sliding platform to allow safe and easy loading of the test sample.
3. The radiant heat is applied by means of a gas-fuelled panel, inclined at 30º, and directed at a horizontally mounted floor covering system specimen.
4. The radiant panel generates a radiant energy flux distribution ranging from a nominal maximum of 10.9 kW/m2 to a minimum of 1.1 kW/m2.
5. Dummy calibration specimen with holder, calibrated heat flux meter, and mounting.
6. The distance burned until flame-out is reached and converted, by calibration, into an equivalent critical radiant flux, in kW/m2.
7. Heat Flux Meter: Range 0 ~ 50 kW/m2; Surface emissivity: ε=0.95± 0.05.
8. A smoke measuring system, according to DIN 50055, is mounted on a separate frame at the exhaust stack.
9. Control Rack for convenience in use, allowing observation of the apparatus and controls during equipment set-up and calibration.
10. It has the function of automatic ignition of the radiant panel and a safety cut-out.
Application range:
The flooring radiant heat flux test device is for paving materials which are placed horizontally and exposed to a slanted heat radiation field with a small flame; various flooring materials such as: textile rugs, cork boards, wood boards, rubber sheets And plastic floor and floor spray materials.
Technical parameters:
|
Maximum operating power
|
5kw
|
|
Timing accuracy
|
<1s / h
|
|
Heat flux meter measuring range
|
(0-15) Kw / m2; (heat flow customer-owned)
|
|
Black body temperature error
|
± 5 ℃;
|
|
Smoke speed
|
(2.5 ± 0.2) m / s
|
|
Smoke capacity
|
(39-85) m3 / min
|
|
Porous refractory radiation board size
|
300mm × 450mm, with the ability of about 900 ℃ high temperature;
|
|
Thermocouple
|
diameter of 3.2mm K-type stainless steel armored thermocouple
|
|
Burning torch
|
diameter ¢ 10mm diameter ¢ 6mm, spray tube on the 35 ¢ 0.7mm hole
|
|
Flame height
|
60 ~ 120mm adjustable
|
|
Ignition system
|
high voltage electronic ignition
|
|
Burning box size
|
L1420 * W1200 * H2300 (mm)
|
|
Strong exhaust system
|
The machine is equipped with a strong fan. When the test is completed, start the exhaust fan system
|
