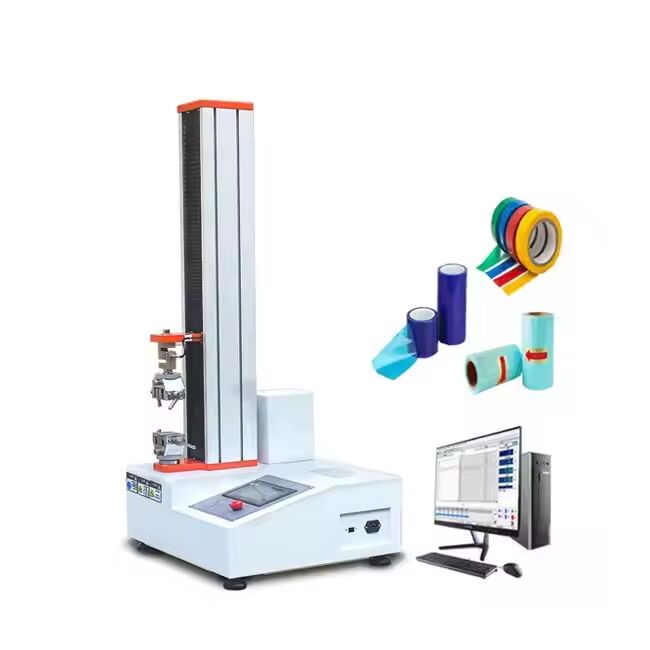

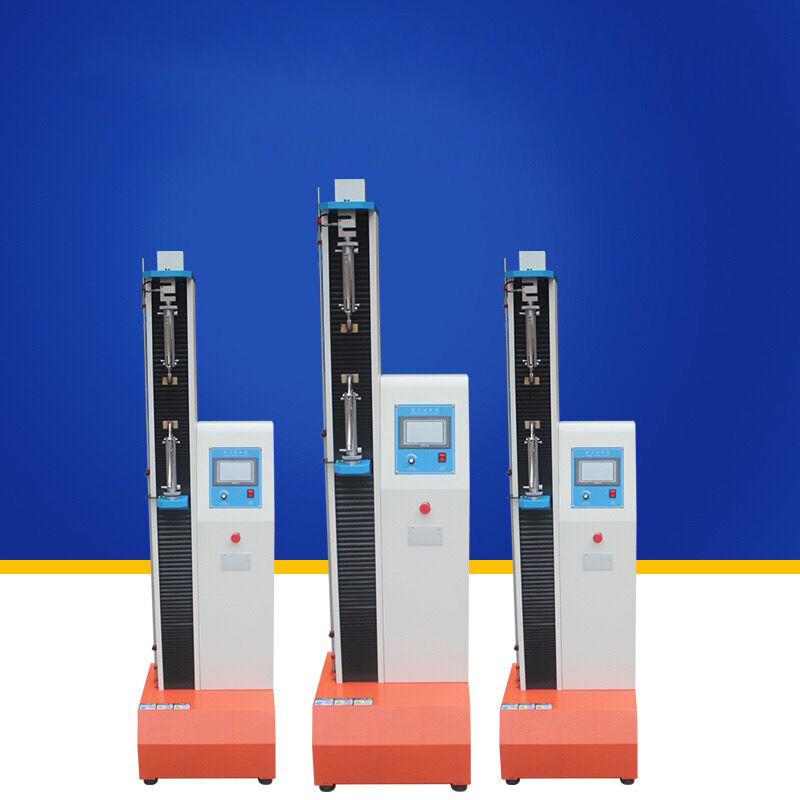

Laboratory Electronic Tensile Tester Universal Tension Test Equipment
Product Overview
This UTM Tensile Strength Test Machine is designed for comprehensive material testing in laboratory and industrial settings, providing precise measurements of tensile strength, peeling strength, deformation rate, and other mechanical properties.
Applications
Suitable for testing plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber, and various other materials.
Industry Applications
- Aerospace
- Petrochemicals
- Machinery manufacturing
- Metal materials & products
- Plastics, wires & cables
- Rubber, paper-plastic printing & packaging
- Adhesive tapes, luggage & bags
- Textile fibers, textiles
- Food and pharmaceuticals
- Automotive, ceramics, composite materials
- Construction, medical equipment
- Communication and various special-shaped materials
Testing Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412
Key Features
- Fully computerized operation with innovative design eliminating bulkiness and complexity
- Integrated panel and aluminum profile plate structure with high precision and low resistance
- Seamless precision ball screws and guide columns for enhanced load efficiency and structural rigidity
- Advanced servo motor drive system with servo driver for high transmission efficiency
- Stable operation, low noise, and accurate speed control
- Automatic detection of material fracture and breakage with automatic stop function
Technical Parameters
Software Technical Parameters:
- Software operating system language: English
- Force units (N, KN, Kgf, Lbf) and length units (mm, cm, in) can be freely converted
- Control modes configurable for speed, load fracture, running time, etc.
- Dedicated manual operation box for calibration and positioning
Available Test Data:
Maximum strength, minimum strength, fracture value, upper/lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation, maximum value, minimum value, average value
Curve Types:
Load-displacement, Load-time, Displacement-time, Stress-strain, Strain-time, Stress-time
Safety Features
Multiple protections including overload, overcurrent, overvoltage, undervoltage, overspeed, stroke limit, and comprehensive safety systems.
Ideal For
Factories, technical supervision departments, inspection institutions, research institutes, and universities requiring precise mechanical property testing of metals and materials.
