Induction Heating Welding Machines Induction Heating Machine

Induction Heating Welding Machines Induction Heating Machine

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

Tempat asal:

Cina

Nama merek:

YUYANG

Sertifikasi:

CE

Nomor model:

YY-40AB

Hubungi Kami
Permintaan Penawaran
Induction Heating Welding Machines Induction Heating Machine
Induction Heating Welding Machines Induction Heating Machine Induction Heating Welding Machines Induction Heating Machine Induction Heating Welding Machines Induction Heating Machine
Rincian produk
Max Fluctuating Power:
40KW
Kekuatan kerja:
340V-430V
Arus Masukan Maksimum:
41A
Daya keluaran:
40KW
Frekuensi berfluktuasi:
30-80khz
Laju aliran air pendingin:
0.08-0.16MPA 7.6L/mnt
titik perlindungan suhu air:
40C
Ukuran Produk:
620x250x530mm
Berat bersih:
34,5Kg
Menyoroti:

induction heating welding machine

,

electrical test set with induction heating

,

welding machine with induction heating

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
$2000
Kemasan rincian
kotak kayu lapis
Waktu pengiriman
5-10 hari kerja
Syarat-syarat pembayaran
T/T, L/C, Western Union
Menyediakan kemampuan
200 set per bulan
Produk terkait
Harga yang bagus High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery on line Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Dapatkan Harga Terbaik
Harga yang bagus Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v on line Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Dapatkan Harga Terbaik
Harga yang bagus 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine on line Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Dapatkan Harga Terbaik
Harga yang bagus 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery on line Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Dapatkan Harga Terbaik
Hubungi Kami
8613265296009
sales13@yuyangtest.com
86-769-26622869
Hubungi Sekarang
Deskripsi Produk

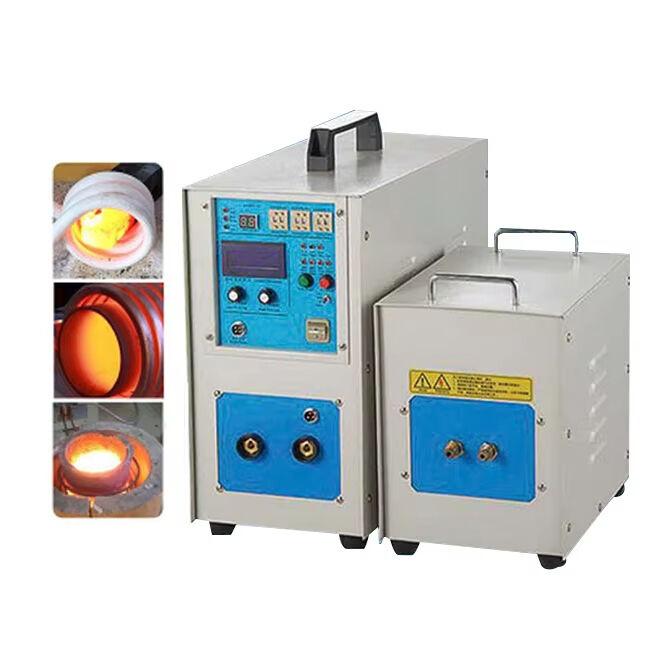

Induction Heating Welding Machines
Advanced induction heating equipment designed for efficient metal processing with superior energy savings and environmental performance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation with 70-80% energy savings compared to traditional heating methods
  • Secure voltage operation for enhanced safety
  • Manual and automatic regulation with comprehensive protection systems
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Versatile applications including brazing, welding, forging, and heat treatment
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metallic materials to heat metals directly without physical contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Advanced amorphous magnetic core technology for superior heating of complex metal shapes
  • High efficiency with rapid 8-second heating cycles and stable magnetic field output
  • Monolithic shell design resistant to weak acids and alkalis
  • Ideal for air conditioning, refrigeration, and complex welding applications
Technical Specifications
Model YY-40AB (Three Phase)
Work Power 340V-430V
Maximum Input Current 41A
Output Power 40KW
Fluctuating Frequency 30-80KHZ
Cooling Water Flow 0.08-0.16Mpa 7.6L/Min
Overheat Protection 40°C
Main Unit Dimensions 620×250×530mm
Transformer Dimensions 480×260×410mm
Main Unit Net Weight 34.5kg
Transformer Net Weight 31.5kg
Applications
  • Metal brazing: copper, brass, tungsten steel, stainless steel, iron, aluminum
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and blade welding, saw-tooth welding
  • Jewelry and watch manufacturing
  • Electronic industry: motor rotor hot-cooperation, electrode soldering
  • Medical implants, bulb electrode manufacturing
  • Sports equipment: golf heads, band accessories
  • Communication equipment: copper coaxial cable connector soldering
Induction Heating Welding Machines Induction Heating Machine 0 Induction Heating Welding Machines Induction Heating Machine 1
Company Information
Location: Guangdong, China
Established: 2018
Market Reach: Global distribution including South Asia, Eastern Asia, North America, Europe, and Oceania
Team Size: 11-50 professionals
Quality Assurance
  • Pre-production sampling before mass production
  • Final inspection before shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment with advanced technical expertise and manufacturing capabilities.
Service Details
Delivery Terms: FOB, CFR, CIF, EXW
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Accepted Currencies: USD, EUR, JPY, AUD, HKD, GBP, CNY
Languages: English, Chinese
