Intelligence Bearing Induction Heaters Bearing Magnetic Induction Heater
Advanced Induction Heating Technology
Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.
Key Characteristics
- Advanced IGBT inverting technology with automatic frequency tracking
- High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube induction heating systems
- Secure voltage operation with enhanced safety features
- Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water deficiency, phase failure, and overheating
- Environmentally friendly operation - no open flame, noise, or pollution emissions
- Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing processes
Operational Advantages
Portable Design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.
Complex Metal Heating: Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.
Efficient Operation: Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.
Technical Specifications
| Model |
YYSQ-TC-300AB (Three phase) |
| Work power |
340V-430V |
| Maximum input current |
450A |
| Output power |
300KW |
| Fluctuating frequency |
5-20KHZ |
| The flow rate of cooling water |
0.08-0.16Mpa 12L/Min |
| Water temperature protection point |
50°C |
| Product size |
Main: 700*940*1690MM
Multiple Connect transformer: 1220*520*630MM |
| Net weight |
Main: 215kg
Multiple Connect transformer: 159kg |
Industrial Applications
Brazing Materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
Welding: Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
Electronic Industry: Motor rotor hot-cooperation, electrode silver and tin soldering
Specialized Applications: Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
Communication Equipment: Copper coaxial cable connector soldering and related applications

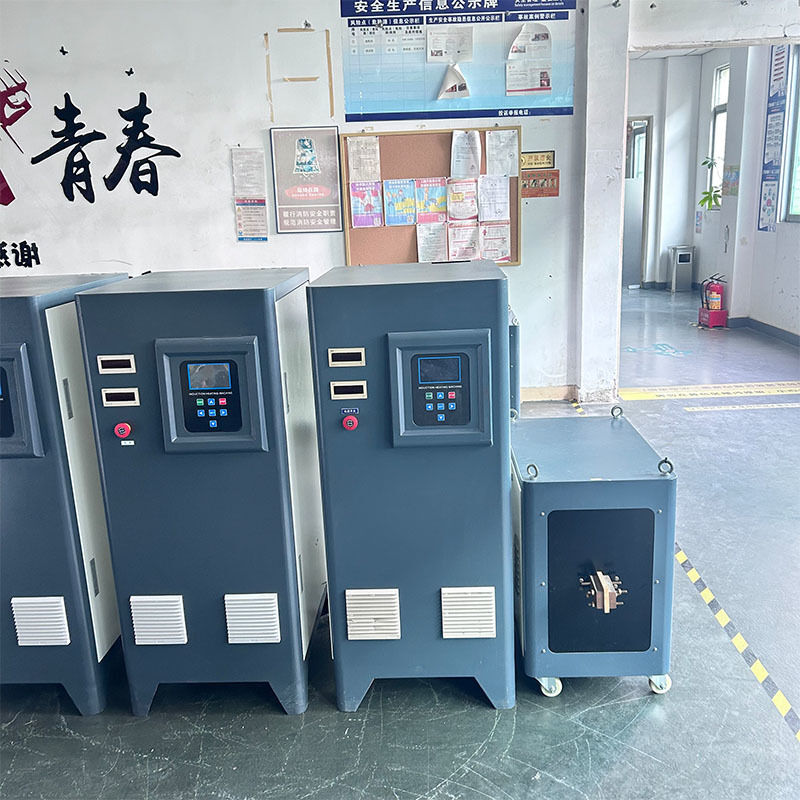

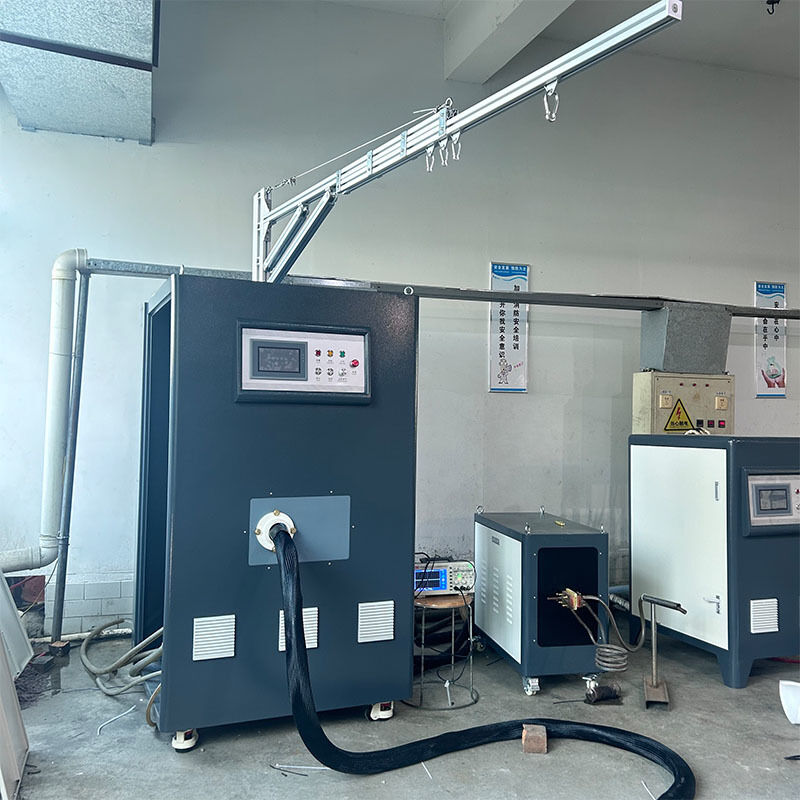

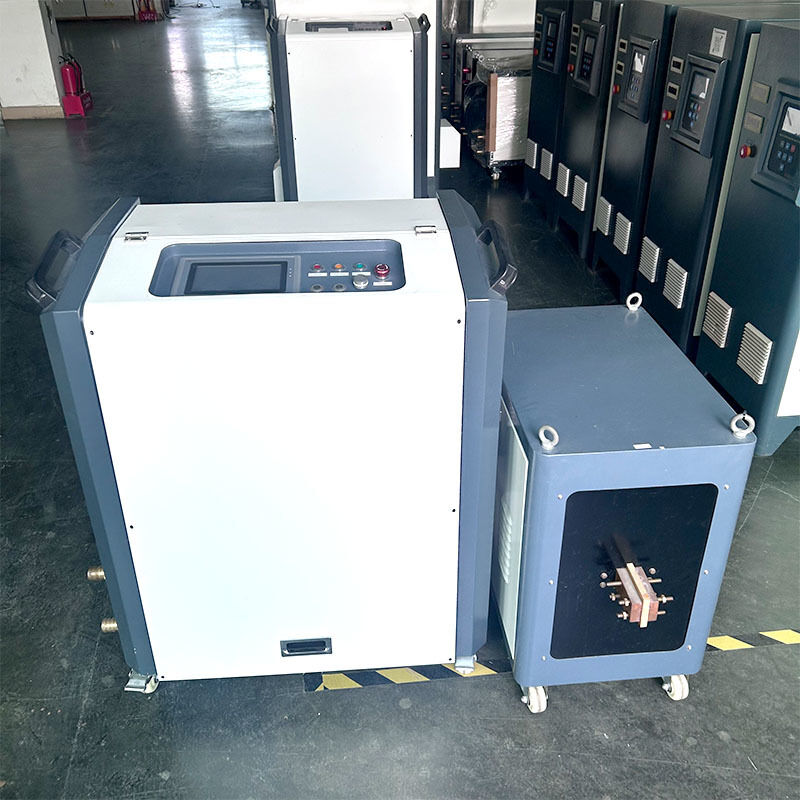

Product Gallery
Manufacturer Information
Company Profile
Based in Guangdong, China, established in 2018. Serving global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Team of 11-50 professionals.
Quality Assurance
- Pre-production sampling before mass production
- Final inspection prior to shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Competitive Advantages
High-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Business Services
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
