Name: Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYD-100D
Price: 25,000.00 USD
Availability: InStock

Rumah > Produk > Mesin uji tarik >

Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO

50kN tensile testing machine

dual column tensile tester

servo motor testing machine

Tempat asal:

Cina

Nama merek:

YUYANG

Sertifikasi:

Nomor model:

YYD-100D

Hubungi Kami

Permintaan Penawaran

Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO

Rincian produk

Beban Maks:

100kn

Akurasi beban:

Kelas 1 atau Kelas 0,5

Rentang Tes:

2-100%FS atau 0,4-100%FS

Resolusi beban:

1/500000FS

Mode Kontrol Uji:

3 kontrol loop tertutup, tegangan, regangan dan perpindahan

Ruang Tarik/Kompresi:

650mm

Lebar tes:

410mm

Akurasi Deformasi:

≤ ± 1%

Resolusi Perpindahan:

0,01mm

Rentang Kecepatan Crosshead:

0,001～500mm/menit

Dimensi keseluruhan (P*L*T):

800*500*1950mm

Kekuatan:

1kw

Tegangan suplai:

1P 220V±10%,50-60HZ,500W

barat laut:

500kg

Suhu Operasional:

0 hingga +38°C (+32 hingga +100°F)

Kisaran kelembaban:

10% hingga 90% Non-kondensasi

Menyoroti:

50kN tensile testing machine

dual column tensile tester

servo motor testing machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

pending

Kemasan rincian

kotak kayu lapis

Waktu pengiriman

5-10 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Western Union

Menyediakan kemampuan

200 set per bulan

Produk terkait

Mesin pengujian ketegangan kain tekstil 10kN dengan laju perpanjangan konstan CRE ASTM ISO

Dapatkan Harga Terbaik

Mesin Uji Tarik Geotekstil 50kN 100kN Pegangan Spesimen Lebar ASTM D4595 ISO 10319

Dapatkan Harga Terbaik

Mesin pengujian ketegangan kapasitas tinggi 500kN untuk pengujian bahan struktural logam berat baja

Dapatkan Harga Terbaik

Penguji Tarik Kemasan Film 5kN ASTM D882 D1708 untuk Lab Film Poliester PVC PE PP

Dapatkan Harga Terbaik

Hubungi Kami

8613825729462

sales03@yuyangtest.com

86-769-26622869

Hubungi Sekarang

Deskripsi Produk

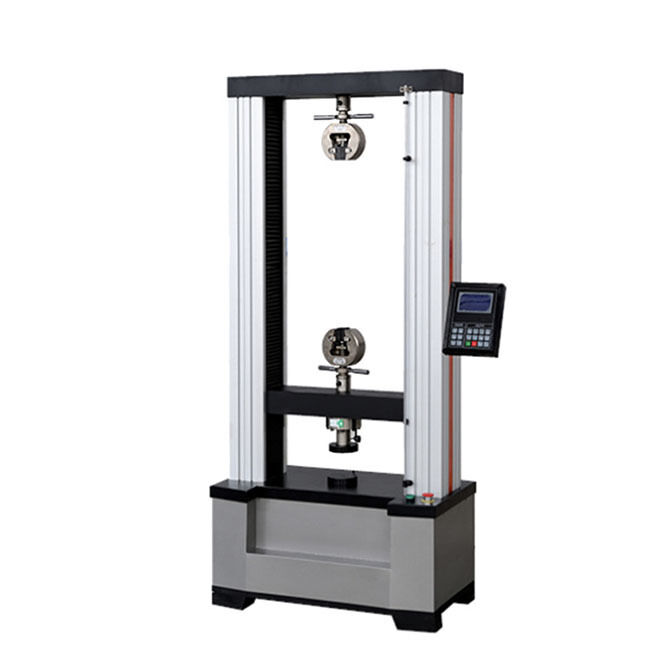

Dual Column 50kN Universal Tensile Testing Machine

Servo motor computer control system compliant with ASTM and ISO standards

Technical Specifications

Control Mode	Digital Display System
Model	YYS-5D	YYS-10D	YYS-20D	YYS-30D	YYS-50D	YYS-100D
Max Load	5KN	10KN	20KN	30KN	50KN	100KN
Load Accuracy	Grade 1
Test Range	2-100%FS
Tensile/Compression Space	800mm	789mm	750mm	650mm	-
Test Width	300mm	315mm	400mm	410mm	-
Deformation Accuracy	≤±1%
Displacement Resolution	0.01m
Crosshead Speed Range	0.001～500mm/min
Overall Dimensions (LWH)	4203001500mm	6634301700mm	7705001830mm	8005001950mm	-
Power	0.3kw	0.75kw	1kw	-
Operating Temperature	0 to +38°C (+32 to +100°F)
Humidity Range	10% to 90% non-condensing

Additional Options

Extra wide and/or extra height frames are available
Power supply system is completely customizable

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2018. We serve customers in South Asia (20.00%), Eastern Asia (20.00%), Domestic Market (15.00%), Southeast Asia (15.00%), Eastern Europe (10.00%), North America (10.00%), Oceania (5.00%), and Western Europe (5.00%). Our team consists of 11-50 professionals.

How can we guarantee quality?

Always provide pre-production samples before mass production
Always conduct final inspection before shipment

What can you buy from us?

Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines

Why should you buy from us instead of other suppliers?

We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment and related products.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW
Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages Spoken: English, Chinese
