EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display

EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display

30L/min Water Flow Testing Machine

0.6 MPa Pressure Flow Rate Tester

Real-Time Data Display Flow Rate Testing Equipment

Tempat asal:

Cina

Nama merek:

YUYANG

Sertifikasi:

CE

Nomor model:

YYE099

Hubungi Kami
Permintaan Penawaran
EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display
EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display
Rincian produk
Metode:
Tes reguler air panas & dingin
Standar:
GB, ASTM, EN 200,EN 1112,EN 817
Fungsi:
Uji aliran tekanan reguler 6bar Uji aliran katup sudut sprinkler selang
Jangkauan:
2,5～30L/mnt
Jangkauan Suhu Air:
Suhu kamar-60℃
Kekuatan:
380V 50HZ 2,5KW
Bahan:
baja tahan karat 304
Menyoroti:

30L/min Water Flow Testing Machine

,

0.6 MPa Pressure Flow Rate Tester

,

Real-Time Data Display Flow Rate Testing Equipment

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1
Harga
negotiable
Kemasan rincian
kotak kayu
Waktu pengiriman
7-30 hari
Syarat-syarat pembayaran
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Produk terkait
Harga yang bagus Mesin Uji Siklus Hidup Keran yang Dikendalikan Komputer EN817 dengan Kecepatan yang Dapat Disesuaikan (0-15/menit) dan Konstruksi Baja Tahan Karat on line Video

Mesin Uji Siklus Hidup Keran yang Dikendalikan Komputer EN817 dengan Kecepatan yang Dapat Disesuaikan (0-15/menit) dan Konstruksi Baja Tahan Karat

Dapatkan Harga Terbaik
Harga yang bagus EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display on line Video

EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display

Dapatkan Harga Terbaik
Harga yang bagus EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction on line Video

EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction

Dapatkan Harga Terbaik
Harga yang bagus Pemanas Induksi HF PLC Portable: AC Brazing, Bearing & Metal Heating on line

Pemanas Induksi HF PLC Portable: AC Brazing, Bearing & Metal Heating

Dapatkan Harga Terbaik
Hubungi Kami
8613825728654
sales09@yuyangtest.com
86-769-26622869
Hubungi Sekarang
Deskripsi Produk

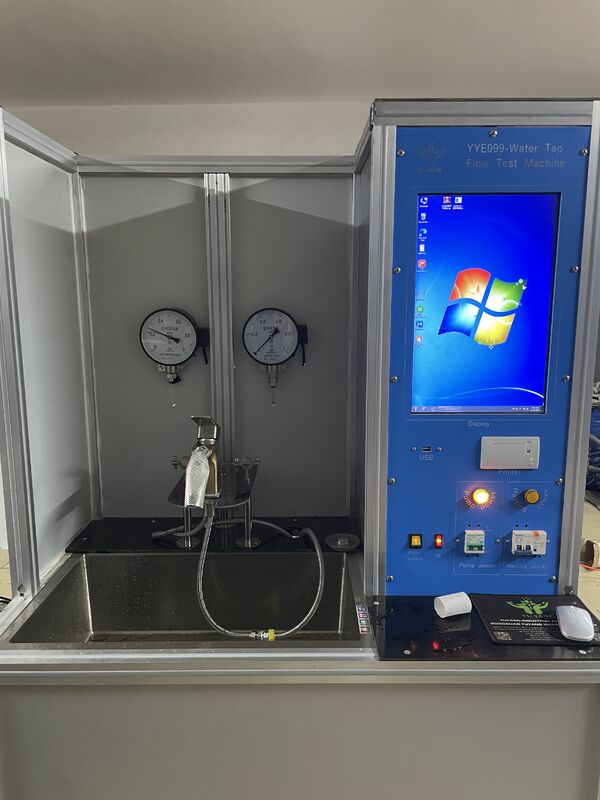

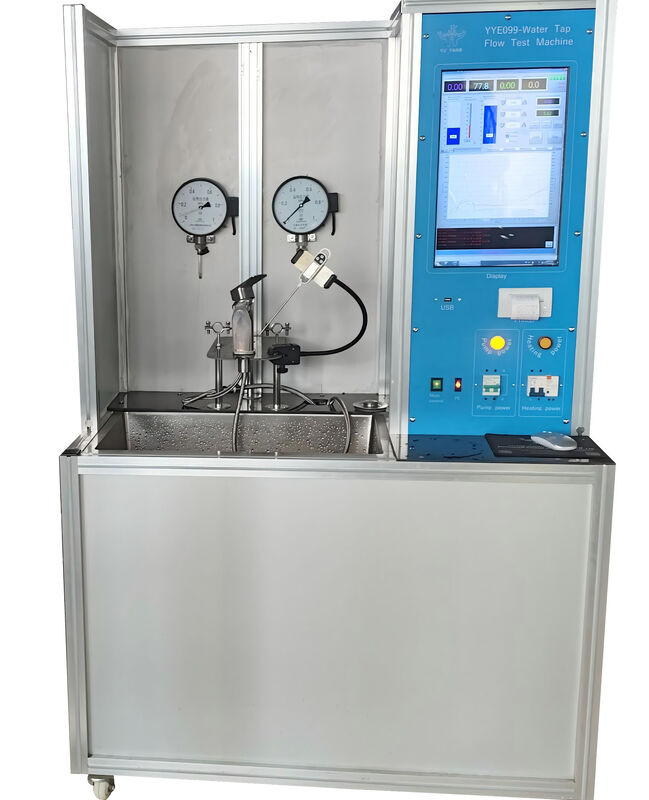

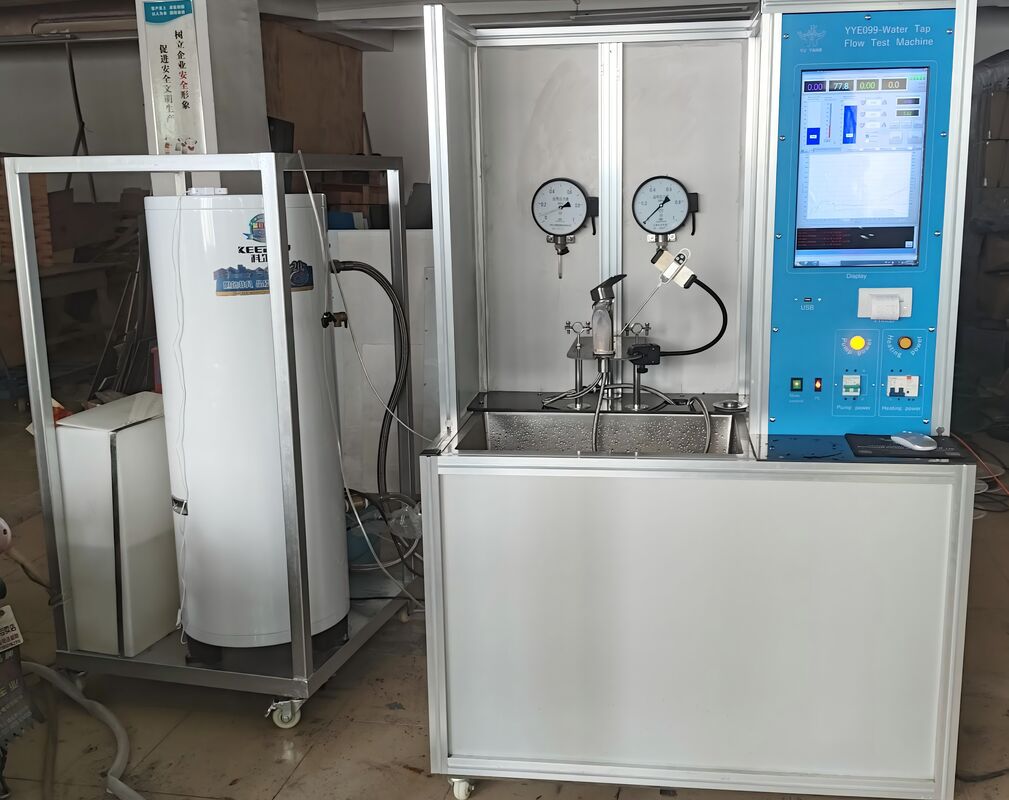

EN817 Professional Water Flow Testing Machine YYE099
Advanced automatic faucet flow rate testing equipment with PLC control, thermal printer, LED lighting, and exhaust fan. Designed for comprehensive testing of hoses, nozzles, pipes, and angle valves.
EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display 0
Application Scope
Ideal for testing water hoses, nozzles, pipes, angle valves, and similar components with flow rates up to 30 liters/minute and dynamic pressure less than 0.6 MPa.
Technical Specifications
Frame Construction Aluminum frame with water recycling system and storage tank
Water Supply System Stainless steel water tank, stainless steel multi-stage pump, and piping
Pressure Regulation Frequency converter for precise pressure and flow rate control
Mobility & Features Four swivel casters for easy movement, LED lighting, and exhaust fan in testing chamber
Control System PLC and host computer with real-time data display and thermal printer
Valve Compatibility Multi-functional valve mounting plate accommodates most commercial faucets
Flow Rate Testing Capabilities
  • Minimum flow rate test: 0.14 MPa (20 psi)
  • Maximum flow rate test: 0.41 MPa
  • Nozzle maximum flow rate test: 0.55 MPa
Key Functions
  • Automatic adjustment of flow rate and pressure
  • Low-pressure flow rate testing capability

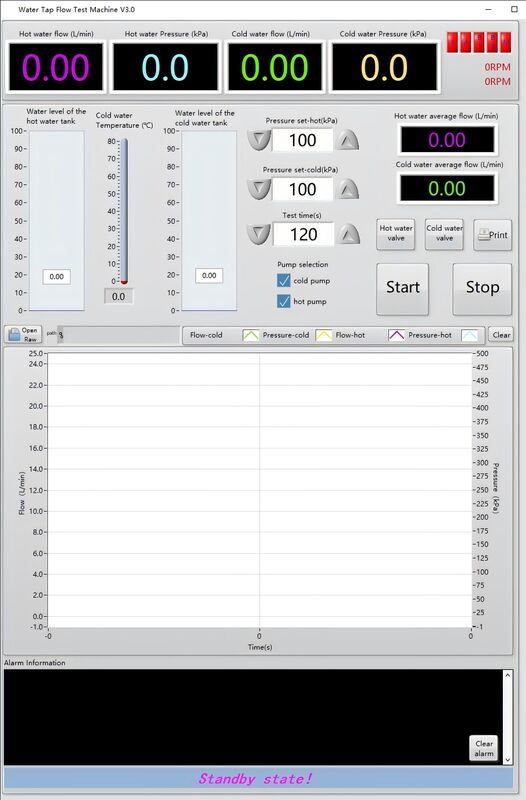

  • Real-time display of flow rate and pressure data
  • Time-flow curve plotting
  • Automatic test result printing
Professional Testing Solution: Complete water flow testing system with comprehensive data analysis, real-time monitoring, and automated reporting for quality control and compliance testing.
