IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

IEC 60754-1 halogen test machine

cable gas release tester

flammability testing equipment with warranty

Tempat asal:

Guangdong, Tiongkok

Nama merek:

YUYANG

Sertifikasi:

Hubungi Kami

Permintaan Penawaran

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

Rincian produk

Ketepatan:

±1%

Kekuatan:

500W

Kelas Perlindungan:

ip55

Voltase:

110v, 220v

Ukuran ruang kontrol:

400(W)*400(D)*240(H)mm

Uji Ukuran Perangkat:

1500(W)*450(D)*400(H)mm

Suhu lingkungan:

10°C hingga 35°C

pengatur waktu:

Perangkat pengukuran waktu IEC 60754-1 atau IEC 60754-2

Berat:

80kg

Catu Daya:

AC220V 50HZ, 25A

Rentang konduktivitas:

0,01uS/mm ~ 100uS/mm

Ukuran Ruang Sampel:

1 liter

Panjang Tungku Tabung:

500 ~ 600mm

Diameter Tungku Tabung:

40~60mm

ukuran kapal pembakaran:

panjang 45 ~ 100mm, lebar 12 ~ 30mm, kedalaman 5 ~ 10mm

Menyoroti:

IEC 60754-1 halogen test machine

cable gas release tester

flammability testing equipment with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Produk terkait

BS 476 Bagian 7 Bahan Bangunan Permukaan Alat Uji Penyebaran Api Elektronik

Dapatkan Harga Terbaik

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

Dapatkan Harga Terbaik

Tungku Uji Ketahanan Api Vertikal Material dan Struktur Bangunan ISO 834 BS 476 Bagian 20&22

Dapatkan Harga Terbaik

Peralatan Uji Laju Pelepasan Panas Kalorimeter Kerucut untuk Pengujian Kemudahan Terbakar Mesin Elektronik

Dapatkan Harga Terbaik

Hubungi Kami

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Hubungi Sekarang

Deskripsi Produk

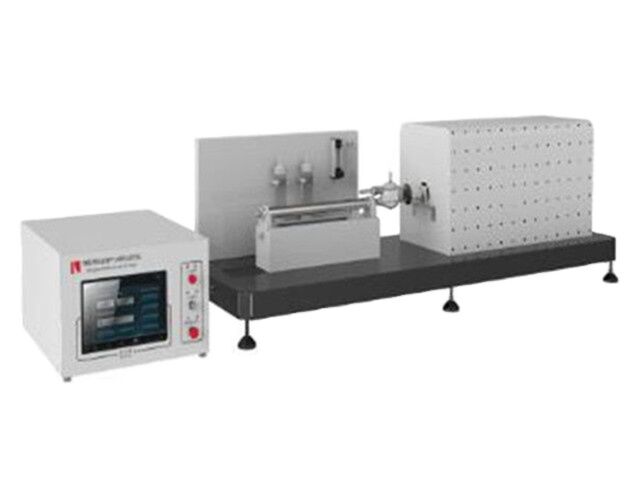

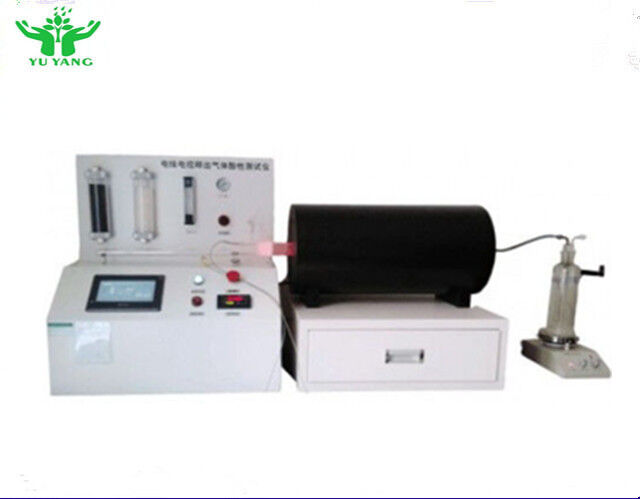

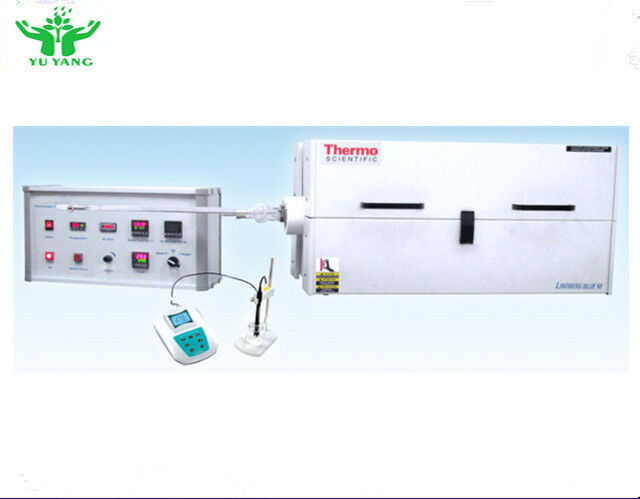

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

The Halogen Acid Gas Tube Furnace is designed to test the acidity of gases released during combustion from cable or optical cable component materials. This equipment determines the acidic properties of cable materials and measures halogen acid gas concentration, pH values, and conductivity levels.

Compliance Standards

GB/T 17650.1~2-1998, IEC 60754-1/2-1994, EN 50305, BS 6853, GB/T 19666-2005, GA 306.2-2007, UL 2556-2007

Key Features

Optimized stainless steel construction with logical layout for easy operation
Tube furnace with 500-600mm effective length and 40-60mm inner diameter
Equipped with imported US thermocouple for precise temperature measurement
Combustion boat dimensions: 45-100mm length, 12-30mm width, 5-10mm depth
Conductivity measuring range: 0.01μS/mm to 100μS/mm
Electronic temperature control system with intelligent furnace temperature management
Dual gas collection bottles and 1-liter sample chamber

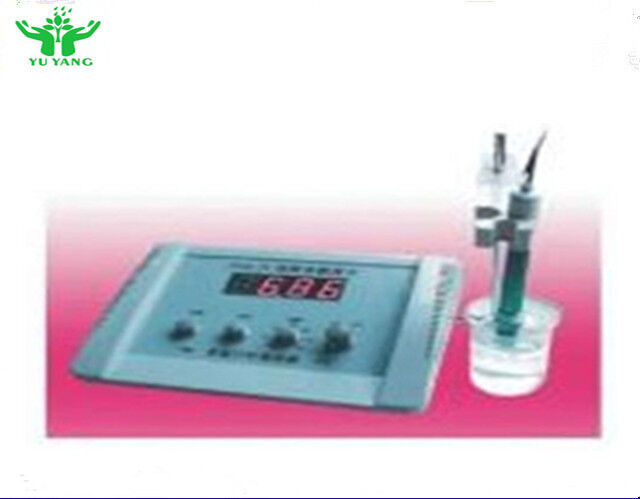

Integrated pH value and conductivity detector with electronic display
Corrosion-resistant silicon dioxide fire pipeline with air flow meter
Air filtration through activated carbon and silicone drying system
Pyrex pipeline for easy sample insertion and damage protection
Automatic combustion boat movement for intelligent testing
Dual test mode selection (IEC 60754-1 & IEC 60754-2)
Temperature alarm system to prevent overheating
Integrated timer for precise test duration measurement
Storage drawer for conductivity meters, pH meters, and accessories
Real-time furnace core temperature indicator
Permanent magnetic stirrer for gas distribution in distilled water

Technical Specifications

Timer	IEC 60754-1 or IEC 60754-2 time measurement device
Test Device Dimensions	1500(W) × 450(D) × 400(H) mm
Control Chamber Dimensions	400(W) × 400(D) × 240(H) mm
Power Supply	AC220V 50HZ, 25A
Sample Chamber Capacity	1 Liter
Weight	80KG
