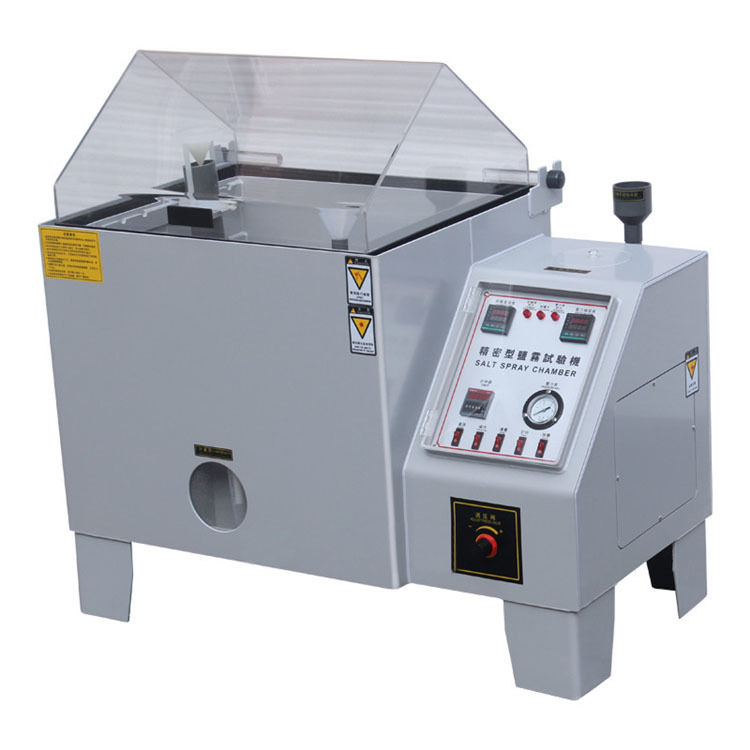

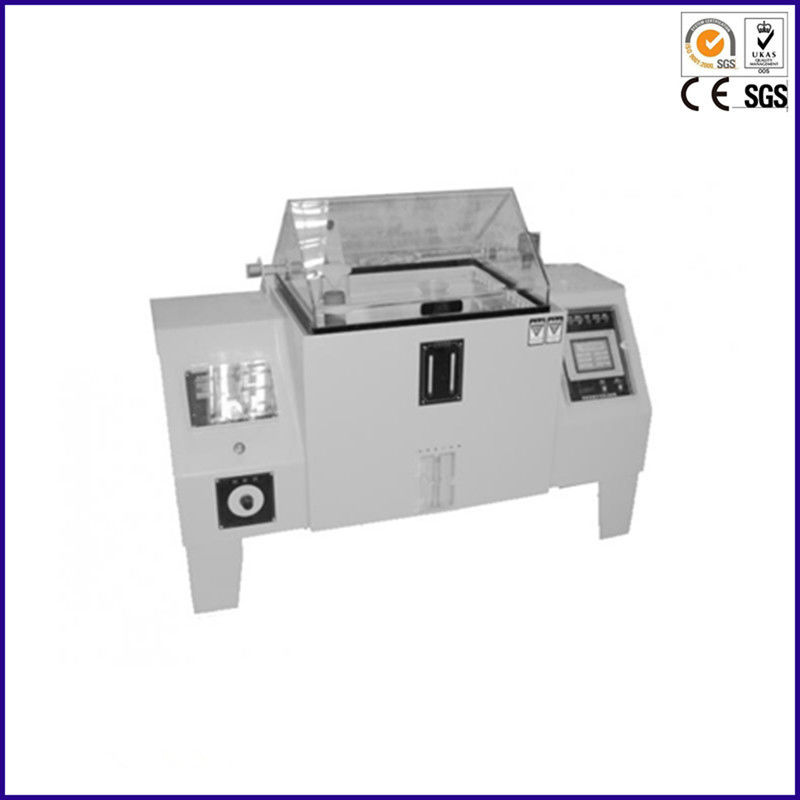

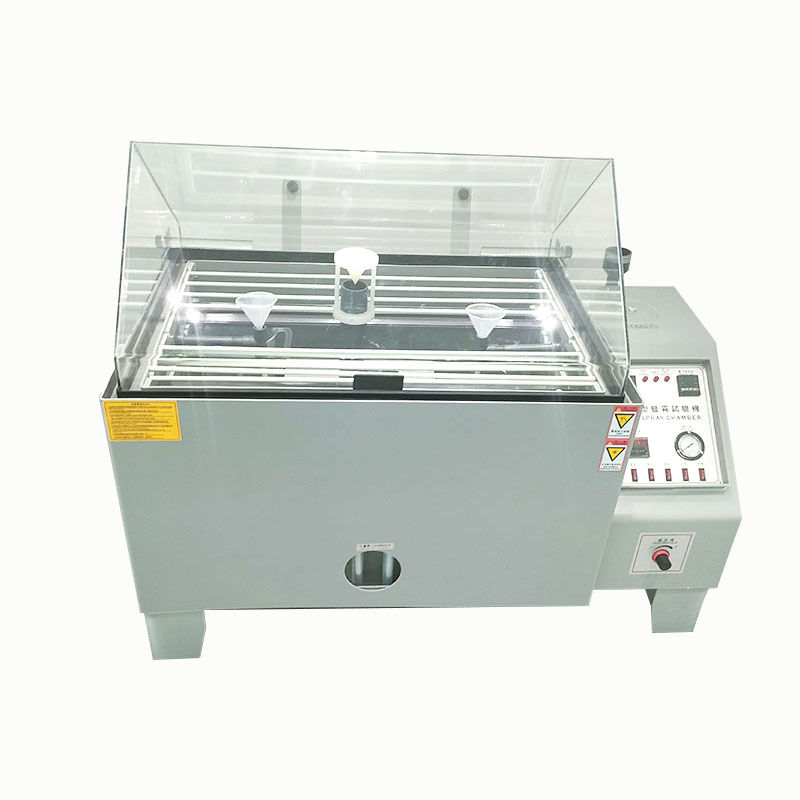

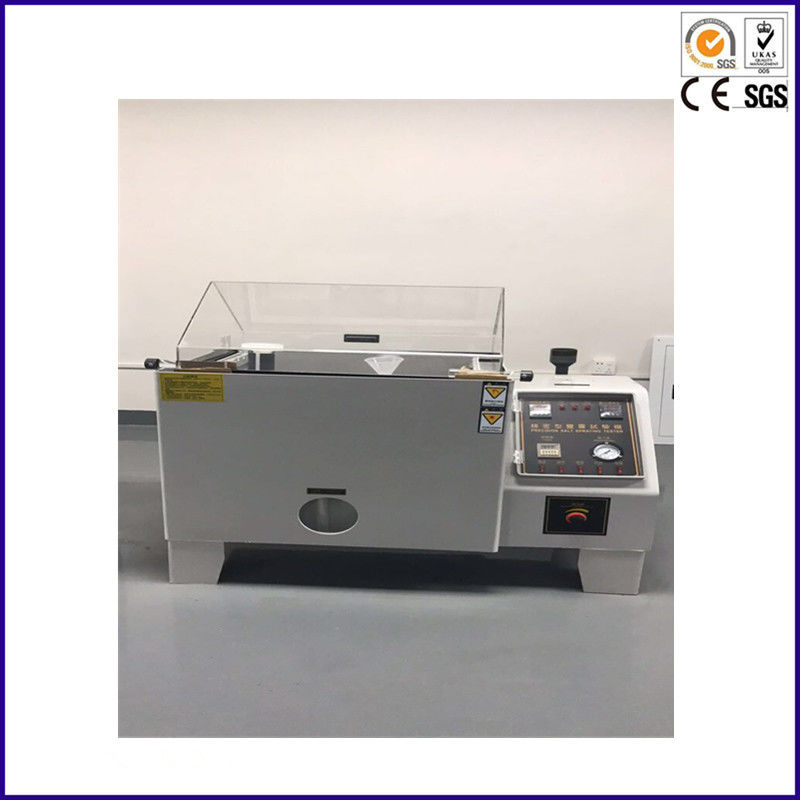

Economic Stainless Steel Automatic Industrial Salt Spray Tester Machine
High Configuration Salt Spray Test Machine designed for ASTM standard electronic laboratory use in corrosion testing applications.
Product Overview
This salt spray test chamber meets popular testing standards including ASTM B117, ISO 9227, ISO 7253, and ASTM G85. Designed for evaluating corrosion resistance of various surface treatments including paint, electroplating, organic and inorganic coatings, and metal products.
Compliance Standards
- GB/T 2423.17-1993 salt spray test
- GB/T 2423.18-2000 salt spray test
- GB/T 10125-1997 salt spray test
- ASTM.B117-97 salt spray test
- JIS H8502 salt spray test
- IEC68-2-11 salt spray test
- IEC68-2-52 1996 salt spray test
- GB.10587-89 salt spray test
- CNS.4158 salt spray test
- CNS.4159 CASS Accelerated acetic acid copper salt spray test
- GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Applications
Suitable for salt spray corrosive testing of protection layers for components, parts, electronic and electrical parts, metal materials, and industrial products.
Chamber Construction
- Transparent chamber cover for clear sample observation and spray monitoring
- Waterproof structure between cover and body prevents salt spray overflow
- Tower spraying system with salt solution filter and non-crystal nozzle for even distribution
Technical Specifications
| Parameter |
YY1015-60 |
YY1015-90 |
YY1015-120 |
| Inner Box Size (L*W*H) cm |
60*40*45 |
90*60*50 |
120*100*50 |
| Outside Box Size (L*W*H) cm |
107*60*118 |
141*88*128 |
190*130*140 |
| Lab Volume |
108L |
270L |
600L |
| Brine Tank Capacity |
15L |
25L |
40L |
| Power |
1AC220V, 10A |
1AC220V, 15A |
AC 1, 220V, 30A |
| Temperature Range |
35°C~55°C |
| Temperature Fluctuations |
≤±0.5°C |
| Temperature Uniformity |
≤±2°C |
| Spray Quantity |
1.0~2.0 ml/80cm²/hr |
Construction & Warranty
- Durable hard PVC construction
- Anti-corrosion design
- Easy clean & operate
- 1 year warranty
Key Features
- Low loading threshold for ergonomic loading and unloading
- "Easy Open" pneumatically operated canopy with safety interlock
- Dry seal gasket to prevent operator clothing wetting
- Timed canopy lock and automatic purge system
- Accessible salt spray atomizers in transparent acrylic
- External portable salt solution tank for easy cleaning
- Central viewing window for unobstructed sample observation
- Base castors and integrated fork lift runners for mobility
- Customizable canopy color options
- Includes calibration certificate and consumables spares kit
- Fallout Measuring Kit included
