Name: Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment 1 Year Warranty
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Yye009
Price: 11957 USD
Availability: InStock

Rumah > Produk > Uji lingkungan Chamber >

Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment 1 Year Warranty

1000L programmable environmental test chamber

constant temperature humidity testing equipment

industrial test chamber with warranty

Tempat asal:

Cina

Nama merek:

YUYANG

Sertifikasi:

Nomor model:

Yye009

Hubungi Kami

Permintaan Penawaran

Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment 1 Year Warranty

Rincian produk

Deviasi Suhu:

± 2 ℃

Kisaran suhu:

-40ºC-+150ºC

Kisaran Kelembaban:

20%~98% RH

Waktu Pendinginan:

1°C/menit (laju pendinginan rata-rata)

Keseragaman suhu:

Kurang dari atau sama dengan ±2°C

Kekuatan:

380V

Menyoroti:

1000L programmable environmental test chamber

constant temperature humidity testing equipment

industrial test chamber with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

KOTAK KAYU

Waktu pengiriman

7-30 hari

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan

5 Pcs Per Bulan

Produk terkait

Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

Dapatkan Harga Terbaik

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Dapatkan Harga Terbaik

Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

Dapatkan Harga Terbaik

Video

Lingkungan iklim untuk ruang uji dengan suhu dan kelembaban konstan untuk peralatan uji

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

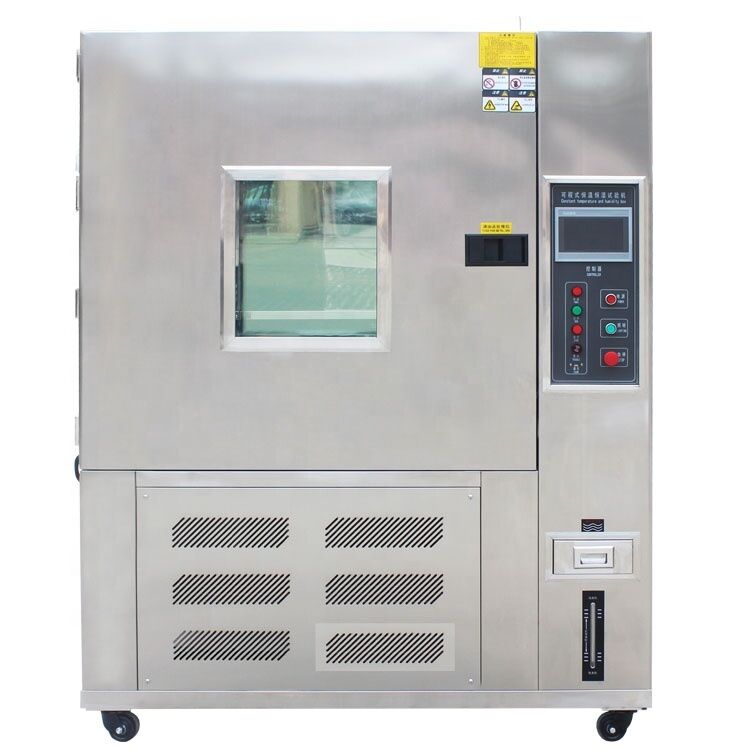

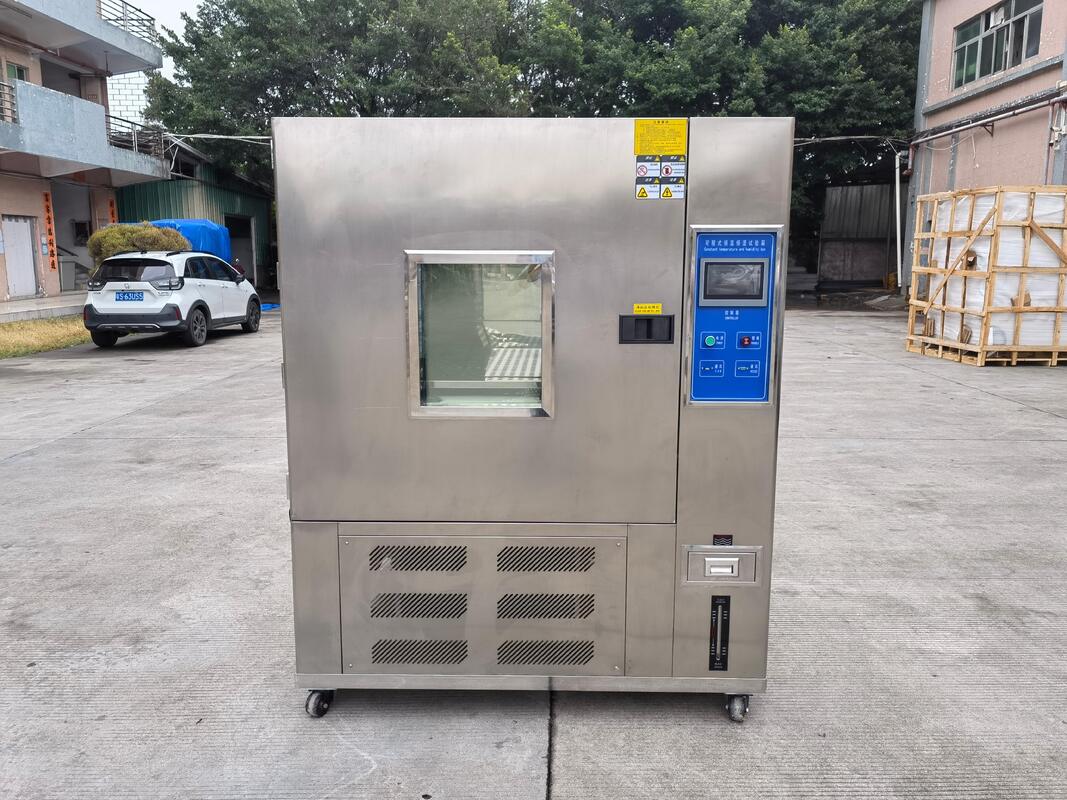

Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment

Professional testing equipment with 1-year warranty for industrial applications requiring precise environmental simulation.

Structural Features

Insulation Envelope

Outer wall material: High quality sand surface stainless steel plate
Inner wall material: High quality mirror surface stainless steel plate
Sealing strip withstands temperature range: -100℃ to +300℃ with 10-year life expectancy
Box insulation material: Rigid polyurethane foam + Glass fibre

Air-conditioning Channel

Multi-wing centrifugal circulation fan with reinforced axis
High and low temperature resistant rotating blades made of aluminium alloy
FLOW THROW air supply mode with horizontal diffusion vertical heat exchange arc circulation
Adjustable side-blowing air outlets and guarded return air outlets

Standard Configuration

Observation window: Transparent electric heating film hollow tempered glass
Lead hole: φ50mm (located in left side of box)
Indoor lighting with high efficiency energy-saving lamps
Mobile casters: 4 units
Stainless steel sample rack: 1 layer with 4 hooks
Load capacity: 25kg per layer (maximum total load: 100kg)

Additional Components

Single-opening hinged door with observation window and anti-condensation electric heating device
Control panel with controller display, power switch and status indicators
Mechanical room housing refrigeration unit, catch pan, drain hole, condensing fan, and charge water tank
Electrical distribution control cabinet with comprehensive electrical components
Nickel-chromium alloy electric wire type heater (12KW power)
External removable boiler humidification system (2.5KW power)
50L replenishment water tank with high/low water level indication

Product Overview

This constant temperature and humidity testing machine utilizes Balance Temperature and Humidity Control System (BTHC) with P.I.D. controlled SSR for stable long-term operation. It simulates various environmental conditions including high temperature/high humidity, high temperature/low humidity, low temperature/high humidity, and low temperature/low humidity environments.

Widely used in aerospace, military, electronics, electrical appliances, petroleum, chemical industry, coatings, plastics, telecommunications, medical/pharmaceutical, universities, and research institutions for product temperature, humidity, and environmental reliability testing.

Specimen Limitations

This test equipment is prohibited for:

Testing or storage of flammable, explosive, or volatile substances
Testing or storage of corrosive substances
Testing or storage of biological specimens
Testing or storage of specimens with strong electromagnetic emission sources
Testing or storage of radioactive substances
Testing or storage of highly toxic substances
Testing or storage of specimens that may generate hazardous substances during testing

Capacity, Dimensions and Weight

Specification	Value
Nominal inner volume	1000L
Inner chamber dimensions	W1000mm × D1000mm × H1000mm
External dimensions (approx.)	W1520mm × D1550mm × H1870mm
Power requirement	380V

Performance Specifications

Parameter	Specification
Test Environmental Condition	Environment temperature: +5~+28℃, Relative humidity ≤85%
Testing Method	GB/T 5170.2-2008 Temperature test equipment GB/T 5170.5-2008 Damp heat test equipment
Temperature Range	-40℃ to +150℃
Humidity Range	20% to 98% RH (25 to 85℃ humidity capable)
Temperature Fluctuation	≤0.5℃
Temperature Deviation	±2℃
Temperature Uniformity	≤±2℃
Heating Rate	3℃/min (average)
Cooling Rate	1℃/min (average)
Relative Humidity Deviation	±2.0% RH (humid-heat type only)

Installation Clearance Requirements: A: not less than 60cm, B: not less than 120cm, C: not less than 60cm, D: not less than 120cm

Environmental Requirements

Temperature: 5℃ to 35℃
Relative humidity: ≤85%
Air pressure: 86kPa to 106kPa
