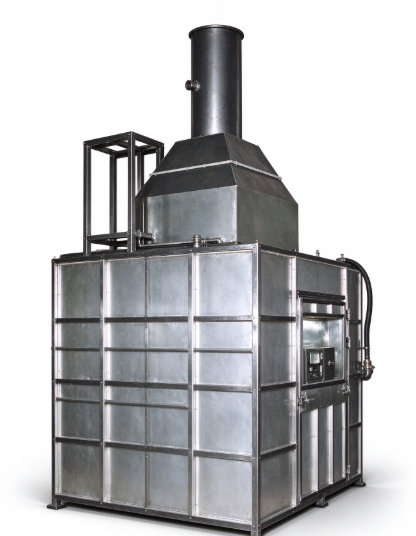

Name: Multi-standard Fire Resistance Tester for Fire Valve, Hose Assembly & Plastic Pipe Watertight Test Bench
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF015
Price: 25000.00 USD
Availability: InStock

Rumah > Produk > Peralatan Uji Mudah-menyala >

Multi-standard Fire Resistance Tester for Fire Valve, Hose Assembly & Plastic Pipe Watertight Test Bench

Fire Resistance Tester for Fire Valve

Hose Assembly Watertight Test Bench

Plastic Pipe Flammability Testing Equipment

Tempat asal:

Tiongkok

Nama merek:

YUYANG

Sertifikasi:

ISO

Nomor model:

YYF015

Hubungi Kami

Permintaan Penawaran

Multi-standard Fire Resistance Tester for Fire Valve, Hose Assembly & Plastic Pipe Watertight Test Bench

Rincian produk

Ukuran ruang uji:

(L) 1.700mm x (T) 900mm x (T)2.000mm

Ukuran kerudung:

(L) 1.700mm x (T) 900mm x (T)2.000mm

Ukuran saluran:

Ø400 x 2.000(P) mm

kipas angin:

Tegangan Angker : 180V / Revolusi : 3000rpm / 1,5HP

Bagian Pembakar:

(L)150mm x (T) 500mm / Nozel : 20 buah/ 0,1m2 / STS 304

Beberapa Pembakar:

(L) 100mm x (D)420mm / Pembakar jet 15 ea / STS 304

Gas(C3H8) Pengontrol Aliran Massa 150 SLPM / Keluaran sinyal:

0 ~ 5V / Akurasi ±1 FS

Pengontrol Aliran Massa Udara 300 SLPM / Keluaran sinyal:

0 ~ 5 V / Akurasi ±1 FS

Wadah untuk air Ukuran:

Ø350 x L500 mm

pompa pendorong:

AC 220V / Maks 20Bar

Menyoroti:

Fire Resistance Tester for Fire Valve

Hose Assembly Watertight Test Bench

Plastic Pipe Flammability Testing Equipment

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

negotiable

Syarat-syarat pembayaran

T/T
