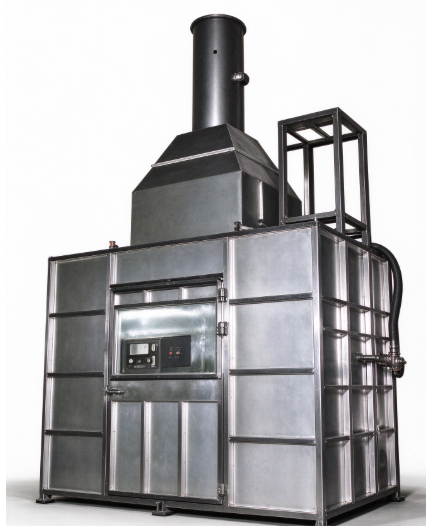

Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test

Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test

fire resistance valve testing equipment

hose pipe flame test equipment

internal pressure flammability testing equipment

Tempat asal:

Tiongkok

Nama merek:

YUYANG

Sertifikasi:

ISO

Nomor model:

YYF015

Hubungi Kami
Permintaan Penawaran
Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test
Rincian produk
Ukuran ruang uji:
(L) 1.700mm x (T) 900mm x (T)2.000mm
Ukuran kerudung:
(L) 1.700mm x (T) 900mm x (T)2.000mm
Ukuran saluran:
Ø400 x 2.000(P) mm
kipas angin:
Tegangan Angker : 180V / Revolusi : 3000rpm / 1,5HP
Bagian Pembakar:
(L)150mm x (T) 500mm / Nozel : 20 buah/ 0,1m2 / STS 304
Beberapa Pembakar:
(L) 100mm x (D)420mm / Pembakar jet 15 ea / STS 304
Gas(C3H8) Pengontrol Aliran Massa 150 SLPM / Keluaran sinyal:
0 ~ 5V / Akurasi ±1 FS
Pengontrol Aliran Massa Udara 300 SLPM / Keluaran sinyal:
0 ~ 5 V / Akurasi ±1 FS
Wadah untuk air Ukuran:
Ø350 x L500 mm
pompa pendorong:
AC 220V / Maks 20Bar
Menyoroti:

fire resistance valve testing equipment

,

hose pipe flame test equipment

,

internal pressure flammability testing equipment

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
negotiable
Syarat-syarat pembayaran
T/T
Produk terkait
Harga yang bagus Fire Valve & Fire Hose Assembly Fire Resistance Tester with LabVIEW Control System on line

Fire Valve & Fire Hose Assembly Fire Resistance Tester with LabVIEW Control System

Dapatkan Harga Terbaik
Harga yang bagus Fire Resistance Valve Hose Pipe Tester | ISO 10497 ISO19921 FTP II Res A753 Fire Test Machine for Firefighting Fittings on line

Fire Resistance Valve Hose Pipe Tester | ISO 10497 ISO19921 FTP II Res A753 Fire Test Machine for Firefighting Fittings

Dapatkan Harga Terbaik
Harga yang bagus Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test on line

Firefighting Fittings Fire Resistance Testing Equipment for Valve Hose Pipe Under Internal Pressure Flame Test

Dapatkan Harga Terbaik
Harga yang bagus Multi-standard Fire Resistance Tester for Fire Valve, Hose Assembly & Plastic Pipe Watertight Test Bench on line

Multi-standard Fire Resistance Tester for Fire Valve, Hose Assembly & Plastic Pipe Watertight Test Bench

Dapatkan Harga Terbaik
Hubungi Kami
8618938165008
sales11@yuyangtest.com
86-769-26622869
Hubungi Sekarang
Deskripsi Produk

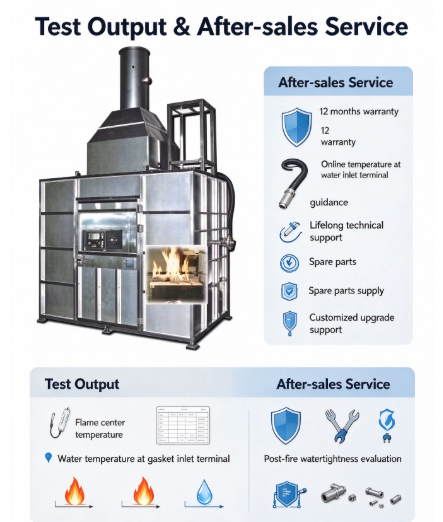

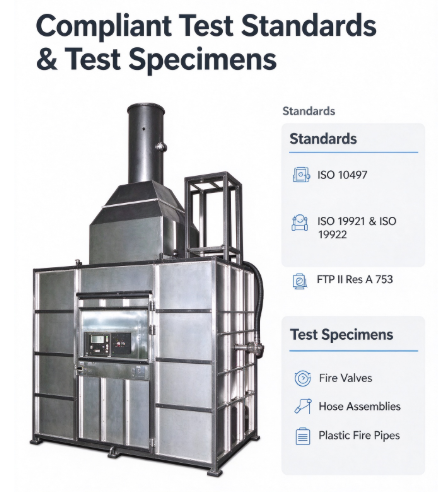

Integrated Fire Resistance Testing for Firefighting Fittings This all-in-one fire resistance test machine is engineered for fire protection fittings, covering fire valves, hose assemblies and plastic fire pipes. It complies with ISO 10497, ISO 19921, ISO 19922 and FTP II Res A753 standards. The system applies a standard flame to pressurized samples and then evaluates watertight performance after fire exposure. Controlled by a LabVIEW system, the tester supports automatic data
